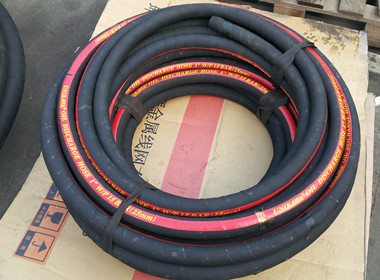

Oil Suction Hose
Construction:
Tube: Black, smooth, nitrile rubber compound.
Cover: Black, smooth(wrapped finish), high grade chloroprene rubber, compounded for an excellent resistance to weather, ozone, abrasion and oil.
Reinforcement: High strength synthetic cord plus helix wire.
Application:
Oil suction hose is suitable for suction of gasoline, Kerosene, diesel oil and lubricating oil and so on. It is used for delivery a wide range of petroleum products.
Temperature: -40 °C to +100°C (-40 ℉ to +212 ℉)
| Oil Suction Hose Technical Specification | ||||||||
| ID | OD | Max W.P | Min B.P | Length | Weight | |||
| inch | mm | mm | psi | Mpa | psi | Mpa | m | kg/m |
| 1 | 25 | 36 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 0.9 |
| 1 1/4 | 32 | 45 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 1.1 |
| 1 1/2 | 38 | 52 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 1.3 |
| 2 | 51 | 65 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 1.4 |
| 2 1/2 | 64 | 80 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 1.8 |
| 3 | 76 | 94 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 2.1 |
| 3 1/2 | 90 | 108 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 3 |
| 4 | 102 | 122 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 60 | 3.7 |
| 5 | 127 | 172 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 40 | 4.8 |
| 6 | 152 | 182 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 40 | 7 |
| 8 | 203 | 240 | 43.5-145 | 0.3-1.0 | 130.5-435 | 0.9-3.0 | 20 | 10 |
